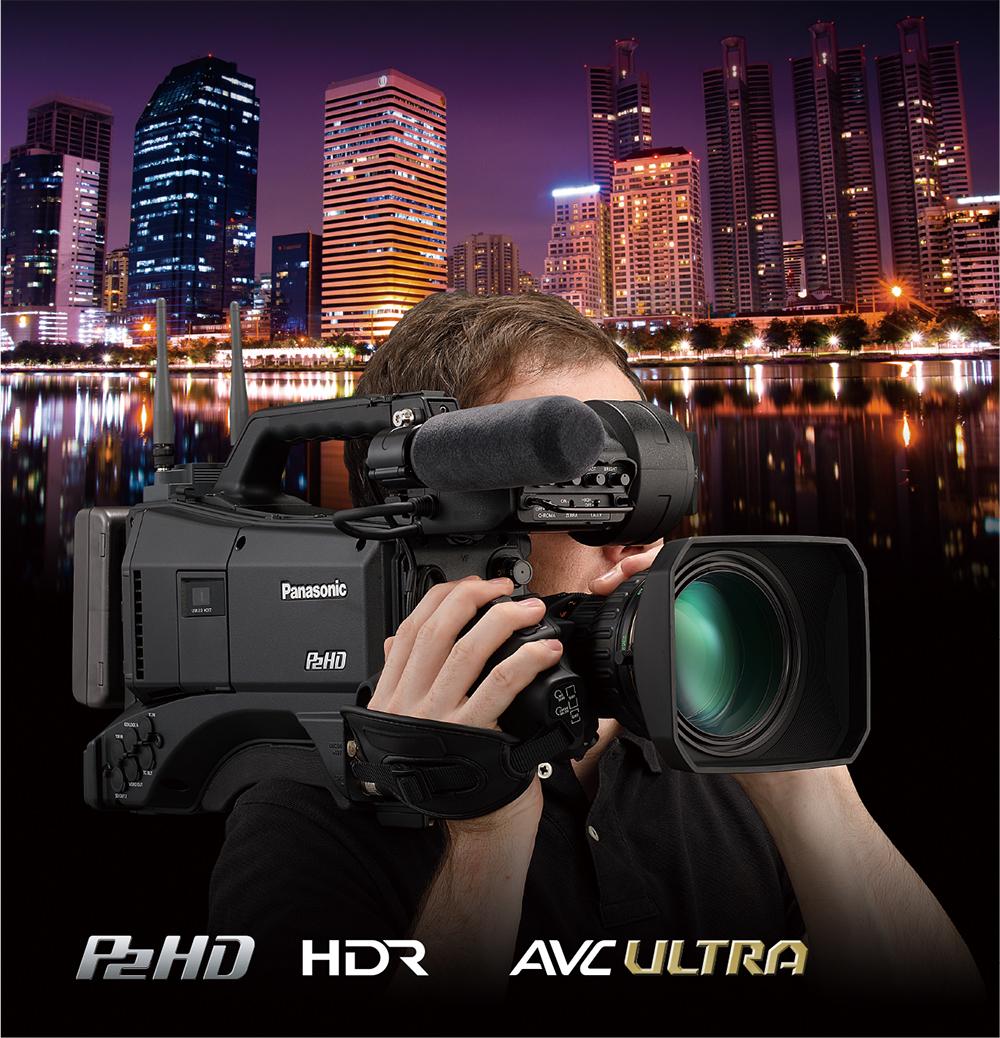

Equipped with high sensitivity 2/3 type 3MOS sensor and FHD/50p AVC-ULTRA coding, new HDR (HLG), RTMP streaming media transmission functions, to meet the needs of multi-level broadcast TV business.
◎ 高灵敏度、低噪、支持HDR、FHD/50p。高画质的基本性能。

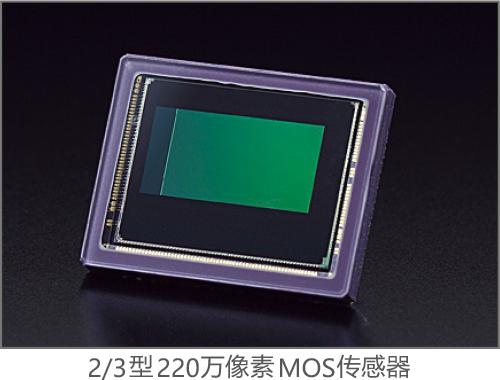

• Type 2/3 3MOS image sensor for high sensitivity and low noise
The 2.2 megapixel 2/3 type 3 MOS RGB image sensor achieves full HD pixel (1920×1080) resolution, F12 (59.94Hz) or F13 (50Hz) high sensitivity, and 62dB (DNR ON) low noise shooting. Achieve rich tones and true color reproduction.
Meet HDR (HLG "Hybrid Log-Gamma")
HLG (Hybrid Log Gamma) is available as HDR (High Dynamic Range) image.
※ It also has HLG shooting assistance.

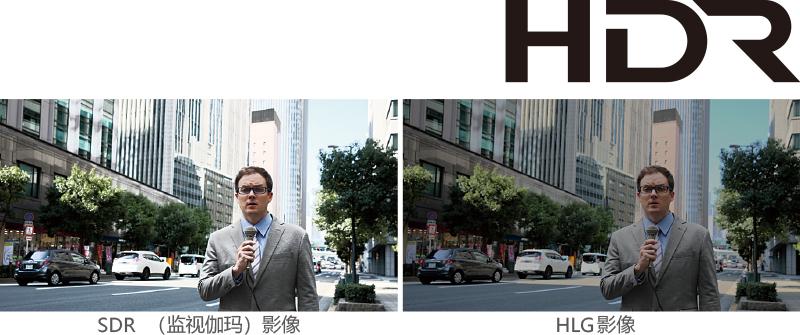

• SDR monitors Gamma
The gamma curve of the HLG image monitored by SDR monitors such as VF maintains the contrast of the normal brightness area and has the characteristic of showing the level of the high brightness area.
• HDR/SDR output simultaneously
Two system SDI outputs can simultaneously output HDR (HLG)/SDR (Monitor Gamma).
• VF one-click HLG switch
Normally, VF displays monitor gamma, but you can temporarily switch to HLG when you need to confirm the hue of a high-brightness area.
• High brightness zebra print display
Zebra prints can be shown in the overexposed areas of VF images.
※ The color area is fixed at 709 (2020 is not supported).
• High definition AVC-ULTRA encoded FHD recording
H.264 High image quality, high efficiency video compression encoding AVC-ULTRA. Master records are selected from AVC-Intra200 with high image quality for master tape processing, AVC-Intra100 with FHD/50p, and AVC-Intra50 with FHD 10 bit 4:2:2 image quality (50/25/12). Sub-record of AVC-Proxy (proxy data) bit rate is low, easy to preview, FHD resolution mode can also be applied to news and so on. At the same time, it also supports the previous DVCPRO encoding.
• HD/SD multi-format
1080/60p/60i/30p/24p, 720/60p/30p/24p multi-format HD and SD (480/60i, 576/50i) records. 59.94Hz/50Hz switching, easy to use in different areas.
※ 60i (60p), 24p, and 30p are actually recorded at 59.94Hz, 23.98Hz, 29.97Hz respectively, or 24p, 25p, and 30p.

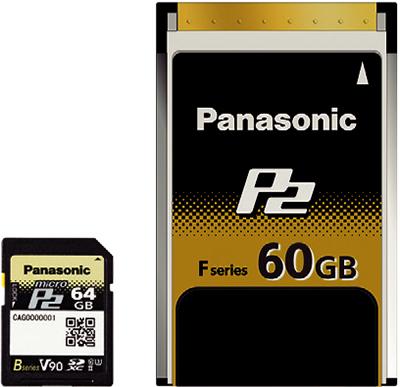

• Trusted recording medium -P2 memory card/microP2 memory card slot
Designed for the broadcast TV sector, P2 memory cards feature a robust housing and connectors for high reliability. microP2 memory cards meet the requirements of reliability and capacity, achieve size reduction and cost control. An SD card can also be used for emergencies.
◎ Support streaming media, P2 Cast advanced network performance.
• Convenient wireless module, flexible network connection
Wi-Fi connected PC, Mac, tablet can be used for proxy preview, camera remote, playlist editing. Connect to the network and support file transfer and streaming media. This is achieved with a wireless module (AJ-WM50MC/ sold separately) or a 4G/LTE wireless device for easy operation. In addition, you can also choose the connection method suitable for the environment, corresponding to the wired LAN connection, LiveU/TVU device.
• Support for RTMP/RTSP full HD streaming
Can be included while output full HD streaming media. In addition to RTSP, streaming media also supports RTMP. Serving Daguan live, Ali video cloud, witness live and many other streaming media applications. The unique Quality of Service (QoS) mode ※1, which optimizes the bit rate according to the line condition, enables stable streaming media delivery. It also achieves high performance by combining with P2SS (streaming media server) ※2.
※ Please see "Streaming Media Mode" "Streaming Media Output" for details.
IoT solutions revolutionize news workflows by connecting interviews and newsrooms through the cloud.
The AJ-PX5100MC and other P2 cameras, working in collaboration with the cloud-based P2 central management system P2 Cast, can achieve immediacy similar to live broadcasting, ensuring automatic operation and integrated photography management focused on interview shooting. It can also save costs.
Does the detailed information please refer to the website: https://panasonic.biz/cns/sav/products/p2cast/index.html
• Automatically upload the camera from P2 to the cloud server
From the P2 camera to the cloud server, the clips can be automatically uploaded in the background. The function of recording while transmitting allows the next recording and playback in the transmission process. In addition, even if the network is disconnected or the power is cut during transmission, transmission will restart after the connection is restored. The crew can focus on shooting without being bothered by uploads.
• More real-time, near-live uploads
P2 Cameras & P2 Cast Unique solutions. During the shooting process, the segmented proxy data is uploaded to the cloud server every two minutes. The image can be previewed through a Web browser. After collection, a fragment is formed on the cloud to achieve sharing on the Web.
• Web sharing of news materials, unified camera management
Enable cloud upload agent fragments to be shared among multiple workers.
Get high-quality data for the necessary scenes by cutting and editing.
Unified camera management is realized through metadata sending and remote setting.
The P2 Cast Bridge connects directly to the nonlinear editing and news systems in use today.
With the P2 Cast Mobile app, it is also possible to record using the iPhone.
※ Interval recording/loop recording/single clip REC/ single shot clip cannot be automatically transmitted. Streaming will not start.
※ Please check the App Store for the working environment of P2 Cast Mobile.
The App Store is a service mark of Apple Inc.
The iPhone is an American Apple Inc registered in the United States and other countries. The trademark of...
• P2SS (P2 Streaming Server) full HD video streaming server
Achieve stable streaming media with unique QoS mode.
The GUI allows for simple and intuitive drag-and-drop operations.
Manage 1,000 cameras, 20 per page.
A maximum of 4 lines of streaming media can be output simultaneously.

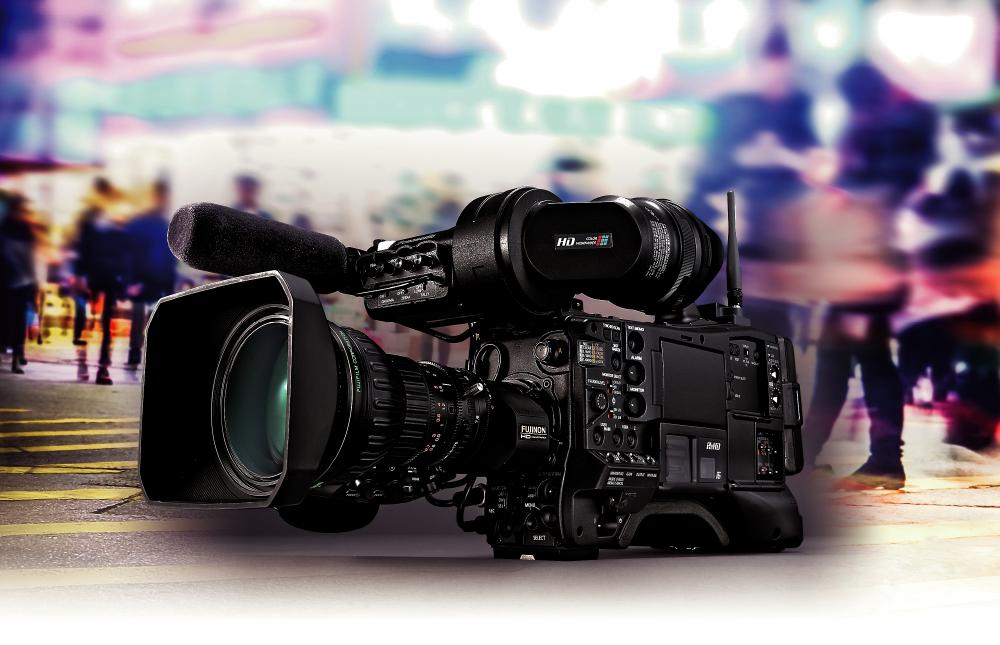

◎ It has complete functions to meet all kinds of photography and recording needs and is suitable for radio and television models.
• High quality video recording to meet the needs of various photographic scenes
ND/CC filter: 2 ×4 optical filters. CC filter specifications for 3200K/4300K/5600K/6300K, you can get bright color reduction.
CAC (Color Correction Compensation) : Using a lens that supports CAC, the lens corrects edge aberrations that cannot be fully corrected by itself.
DRS (Dynamic Range Extension) : It can suppress the dark part too dark and the light part too bright, and obtain a broad visual dynamic.
Advanced FBC: Equipped with high precision flash band detection and compensation.
8 gamma modes: You can choose HD/SD/FILMLIKE 1/FILMLIKE 2/FILMLIKE 3/FILM-REC/VIDEO-REC/HLG※3 Gamma curve.
High sensitivity DS gain: no noise * 4 High sensitivity. Combined with the gain, it can achieve the highest +76dB※5, the lowest illuminance 0.004lx ultra-sensitive recording.
Digital zoom: can be enlarged ×2 times / ×3 times / ×4 times.
• Monitor/status switch display, QHD high precision color LCD
Equipped with QHD (960×540 pixels) high precision color LCD. You can switch between status (time code, level, media, and other information) display and monitor (live view/thumbnail/preview) display.
• Colorful photography assistance and on-site operability
Focus aid: with red hook (use red to emphasize focus), extension (expand the center), focus bar.
Natural transition AWB: Smooth automatic switching of white balance. The shooting effect of scenes such as entering the indoor from the outside is outstanding. Comes with ATW(automatic adjustment) function.
Waveform + VECTOR display: The WAVE (waveform) and VECTOR (vector display) are briefly displayed on the LCD monitor and EVF.
Zebra print: With 1% steps from 0% to 109%, 2 modes of zebra print. There is also a pattern that repeatedly displays both types.
Y-GET: Can be used to correctly measure the brightness near the center of the picture.
Lens file: You can save the corresponding configuration file of the exchange lens.
Setup file: Easy to save/read Settings, easy to match multiple cameras.
MODE Confirm: The setting status is displayed on the EVF/LCD.
REC check: Quickly play back the footage recorded on the card.
User buttons: You can assign functions to any of the five buttons.
Equipped with Back Tally,Rear Tally. Can be set ON/OFF.
• P2 memory card/microP2 memory card 2 x 2 card slots
P2 memory card/microP2 memory card storage has dual card slots respectively, which can guarantee long recording time and achieve the following recording functions ※6.
Dual-stream recording: AVC-Intra/AVC-LongG performs primary recording while recording sub-records at a low rate of AVC-Proxy.
Simultaneous recording: Achieve double recording of the same image and sound at ease.
Hot swap: You can change the memory card, change the slot, and record continuously in the record.
• A wide variety of recording functions
Single-segment REC: Records multiple consecutive segments (up to 99) as one. Text records are automatically added at the start of the REC, corresponding to fragment retrieval.
● Pre-recording: In the standby state, about 8 seconds of video and sound are stored, and the images missed before the REC start can be recorded.
● Cycle record: Cycle record in sequence on two microP2 cards /P2 cards, you can keep the content collected in the past for a certain time.
● Interval recording: Interval time and recording time can be set for automatic intermittent recording.
● Single shot: easy to make animation function.
● Text prompt ※7: You can set up to 100 bookmarks per fragment.
● Shot marking ※7: Mark the footage. To distinguish OK/NG, etc.
● Metadata: Information such as text can be recorded in fragments.
• High quality 24bit · 4CH audio
Use AVC-Intra/AVC-LongG, support high quality 48kHz/24bit/4CH digital audio recording. Each channel can select and level the input of FRONT (Mike), REAR (line), WL (wireless).
※ It can be played using devices that support 24bit digital audio.
• 3G SDI/ input/output and other rich interfaces
Equipped with 3G SDI IN/OUT that supports FHD 50p, it can be widely used in line recording, backup recording, SD frequency conversion output and other scenarios. IN addition, it supports +48V Phantom power XLR audio input (2CH), HDMI OUT, TC IN/TC OUT, GENLOCK IN, USB3.0 (HOST), USB 2.0 (DEVICE).
• Supports multiple controls such as IP/iPad
Support for camera extension system: Use of camera adapter (AG-CA300MC/ sold separately) and base station (AG-BS300MC/ sold separately) to support VE mode recording at low cost.
Dedicated line (10-pin interface) : Power controlled via dedicated line and composite image transmission required for confirmation menu. It can be operated via the extended control unit (sold separately /AG-EC4MC) or the control operation panel (sold separately /AK-HRP200MC).
IP control (LAN interface) : IP control for the wired LAN connection. Actions including menu Settings are possible through the Control Operation panel (sold separately /AK-HRP200MC).
iPad Control: With the P2 ROP APP (free download from the App Store), you can use iPad ※8 to achieve image quality Settings, REC start/stop, clip thumbnapping charts and proxy preview, metadata display, editing and other wireless operation control.
* Any controller can only operate the functions of the AJ-PX5100MC.
※1: QoS mode reception requires free software P2 Streaming Receiver (only for Win, Mac can not run). Details please refer to the web site [https://panasonic.biz/cns/sav/download/].
※2: Server with P2SS installed.
※3: No HDR information (flag) is added during DVCPRO HD recording.
※4: Due to the use of image accumulation, the number of recorded frames per second is reduced, and the image is displayed as a frame motion.
* 5: Super gain +42dB, digital Super gain (cumulative mode) +34dB.
* 6: microP2 memory card slot and P2 memory card slot cannot be used at the same time. Need to switch in the menu.
※7: There is no text indicating the shot mark in loop recording, interval recording, and single shot.
※8: Support iOS12. The App Store, iPad is the US Apple Inc registered in the US and in other countries. The registered trademark or trademark.
|
